Vol.3 | Mold Making System “Core” Set | Physical Print

The Base molds features include:
A two part mold for easy access to your master and any inclusions
A two part inner ring that makes placing your taped master easy
A screw on ring system that prevents leaks
Built-in tapered keys to lock your lid down securely
A Built-in flat surface for protecting the bottom of your mold while making your lid
A print that requires no supports
Grips on parts to easily unscrew the rings, even under the pressure of your silicone

What's new?

Oh boy, here we go... I hope I don’t forget something!
With this Volume we wanted to really push for three concepts, Reliability, Expandability, and Ease
of Use.
-------------------
Part By Part
-------------------

Mold Core
● Brand new threads that are now 4x Start and symmetrical
● New tread angle for faster tightening
● New tread design that drastically reduces print time
● New tread start for better alignment
● The halves are no longer unique, so no more left and right sides
● New snap attachment points with 16 possible mount locations
● Slightly taller core to make up for the attachment points
● Chamfered top for a more comfortable grip with removal
● Optimized alignment channel for less leakage and a faster print
● Modified bottom grip for faster printing
● Expanded bottom profile and rounded ridge for better bed adhesion
● Internal alignment notches for Inner ring alignment and upcoming expansions that are
hidden behind the ring itself
● Removal of the built in ruler as to not leave marks on the final mold from the inverted scale
(See Snap attachments)
● Removal of the built in Marker Rail as to no longer need special alignment (See Snap
attachments)
● Multiple heights for odd projects.
● Replacement of the less used “One-Shot” size with the newer “Solo XL” size that was a late
addition to Vol.2. (“One-Shot” to be revisited as a concept later)
● “Taller” alternative Cores with a bit of extra height (Except for the Solo XL, it is already this
height)

Outer Ring

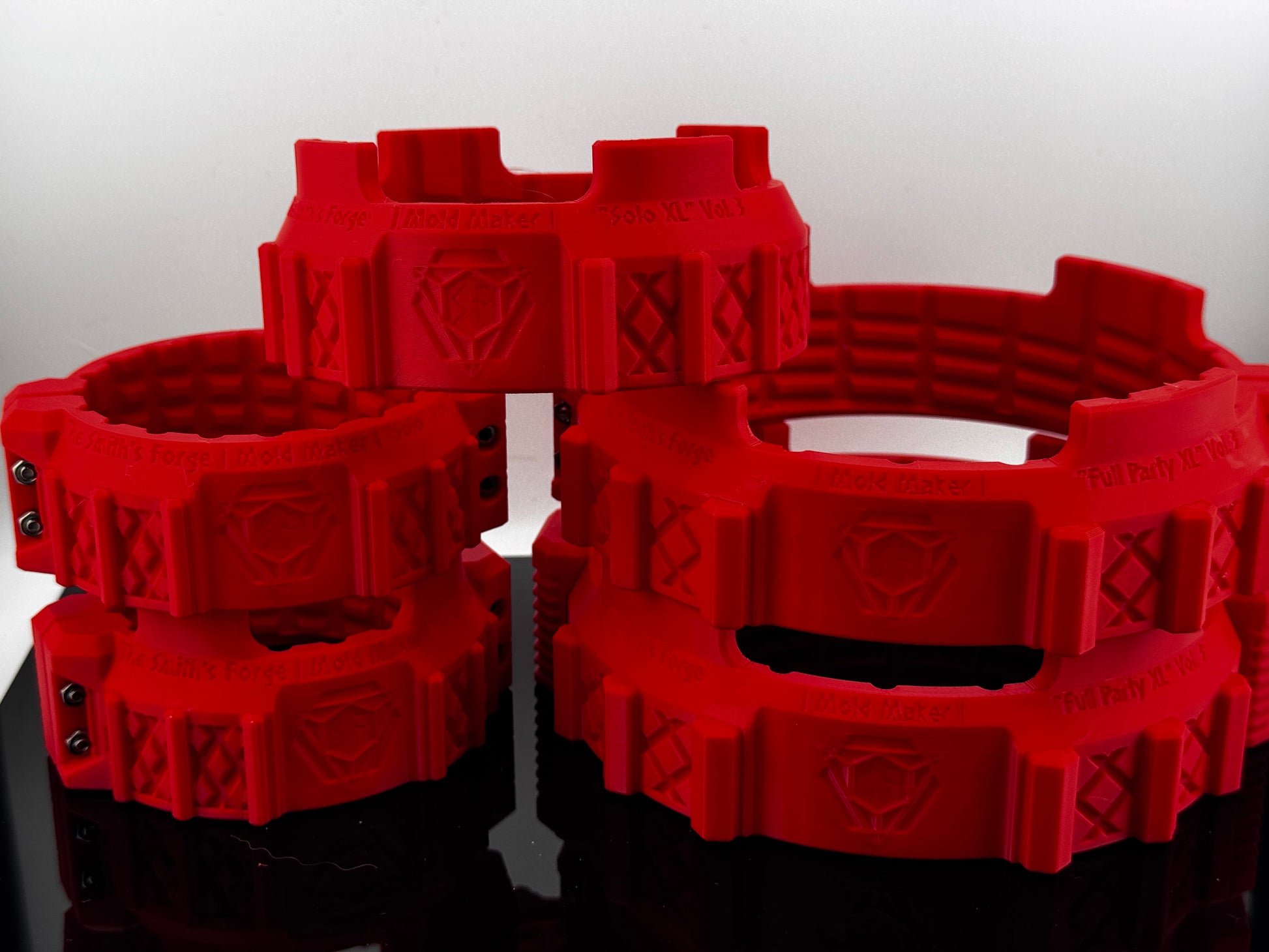

● Brand new Split Ring design for a tighter fit and easy removal after a silicone spill
● Built in Nut alignment for easy bolt installation
● Print friendly hole design for support less printing
● New easier to print threads for faster printing with better tolerance
● A new knurled texture for better grip on the ring
● Grip ridges for easier Ring removal
● New Tensioning Teeth that “Bite” a lot less
● Redesigned tension for the teeth for a more uniform grip
● Re-chamfered bottoms for better bed adhesion
● (Experimental) Hardware-less Spilt Ring for folks that cant get the right tools
● Old Ring renamed to “Classic” and still included ( just like “Toothless” Options)
● Logo touch up for faster printing
● Re-toleranced for a tighter final fit

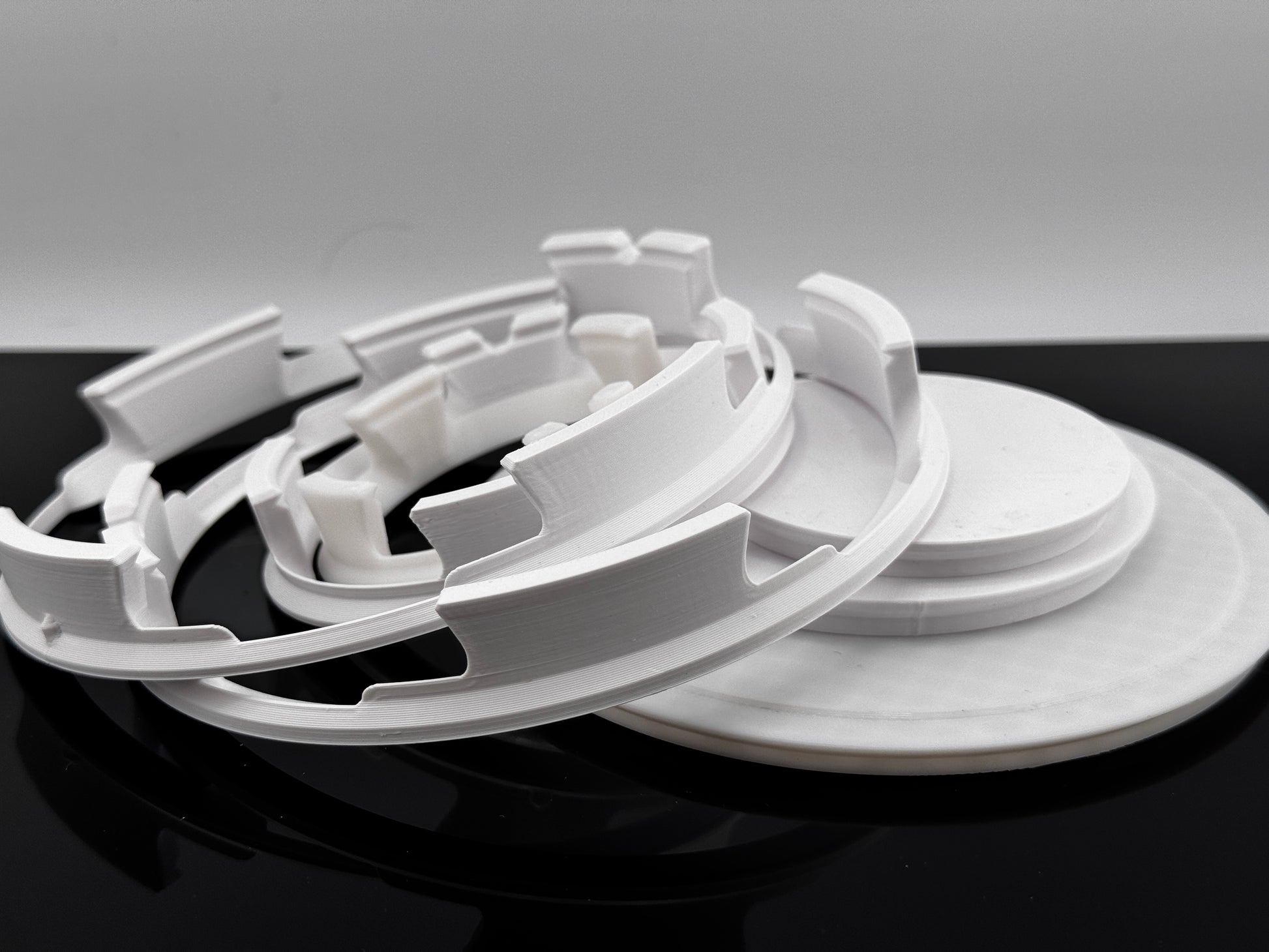

Inner Ring
● Added alignment notches for both the bottom and the top ring
● Added Tape Scoring path to the underside of the top ring for much easier tape cutting
● New Low Resistance Ring for a shorter path for excess resin to flow
● New High Tension Ring sets that create an extra flat mold surface with built in tape tensioning
● Keyless Ring for the crazy folks that asked for it

Snap Attachments
● New Universal Snap Attachment System
● Designed to be modular for later expansion

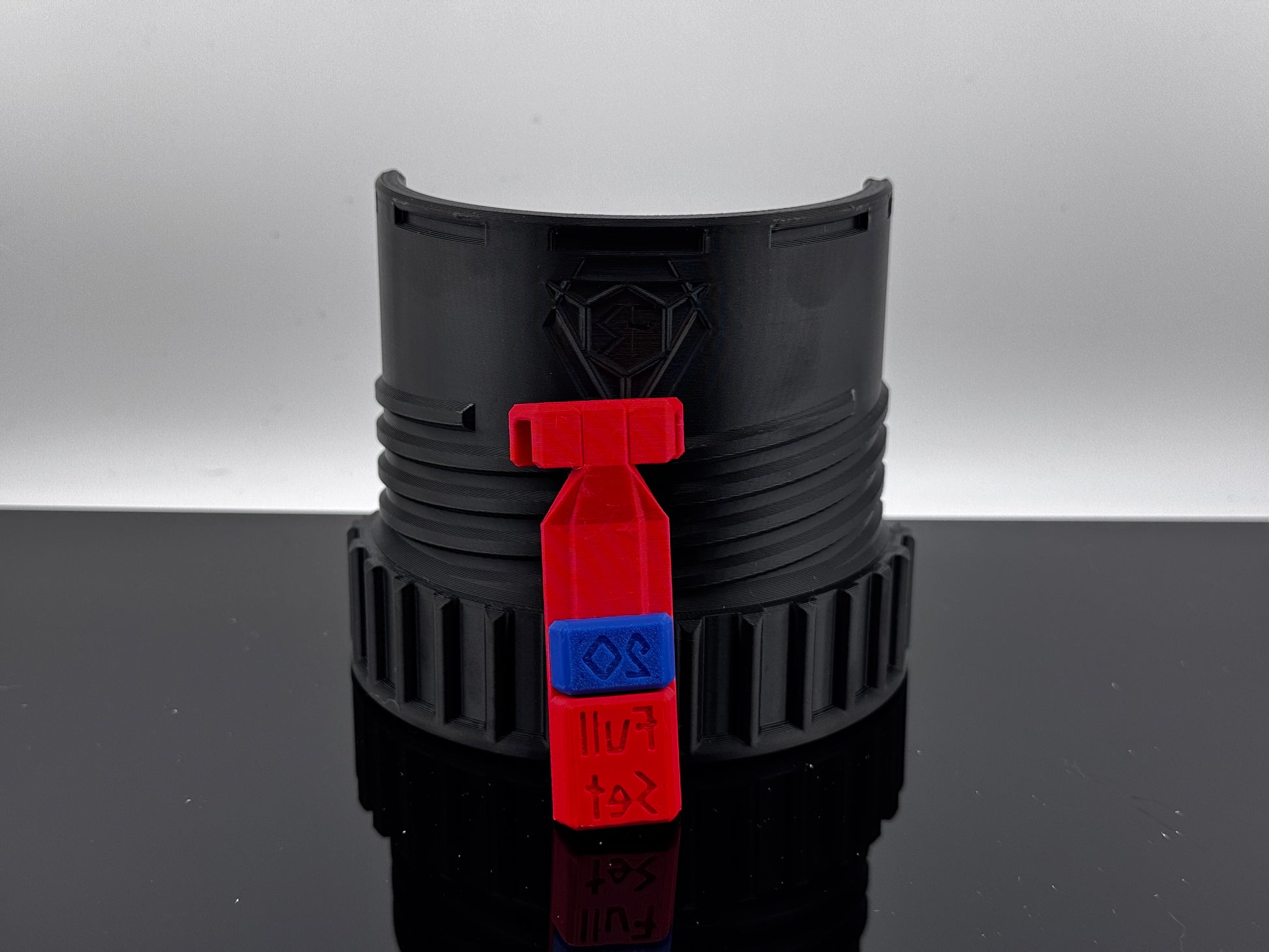

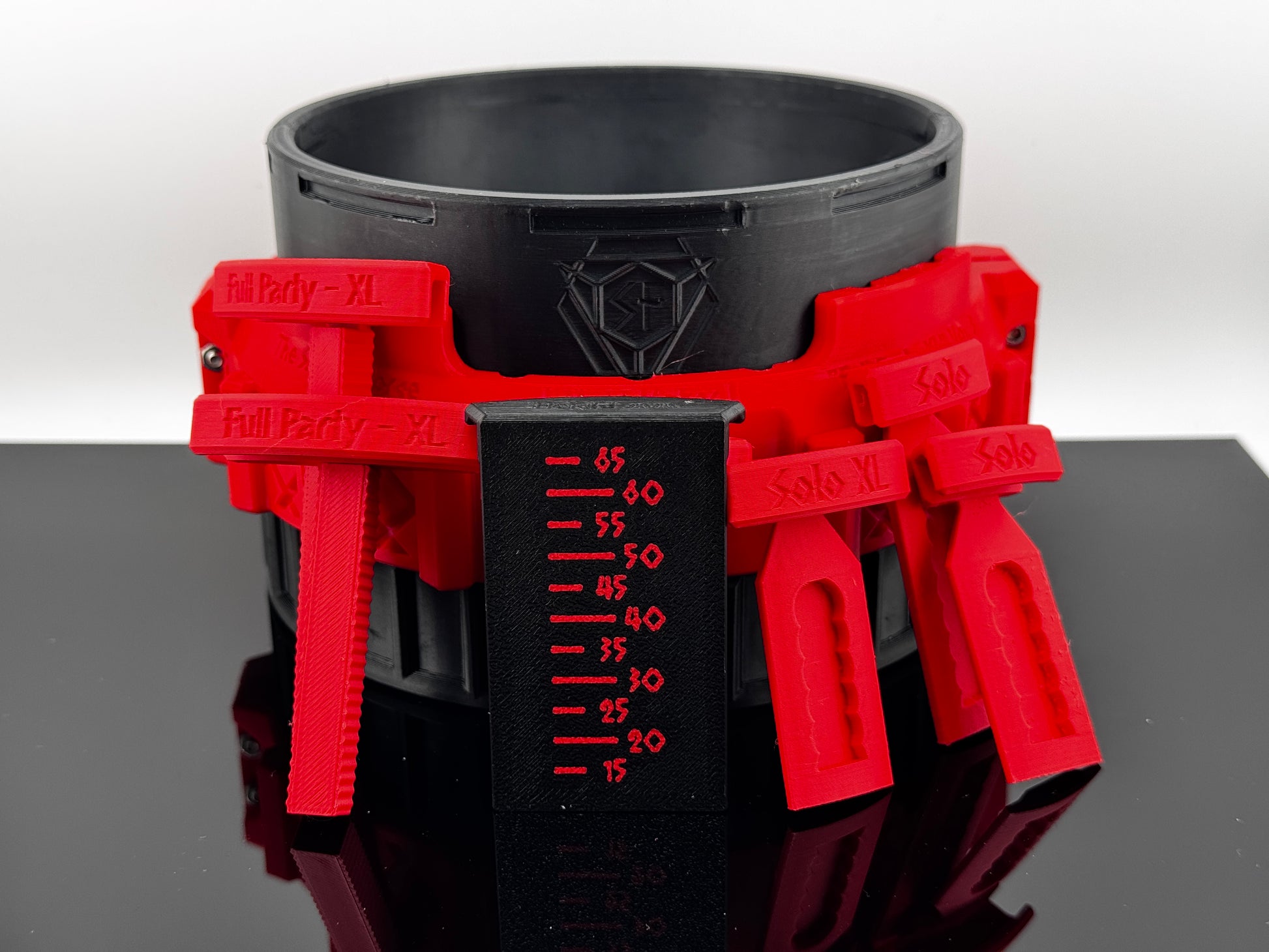

● Updated Marker Rail that is no longer built into the ring allowing it to be placed in several new
spots and removed between steps
● You also no longer need to print maker slides
● (Experimental) Hardware-less Rail for friction fit markers where magnets are not an option
● Standardized bases for ease of printing and reusability

Rulers
● Temporary design to no longer effect the final mold and for easy height readings
● New Multi-color option for Multi-material and Multiplex printers
● “Classic” Embossed Ruler for single material printers
● Hook on design for flat printing to reduce print waste with mult-color and better bed adhesion
when Vertical
● Thin profile to have virtually no effect on its own measurement imposed by it displacing silicone

With this purchase I have included my recommendations for printing and instructions with pictures for using the mold.

Thank you so much for your time, and just keep rolling with it!

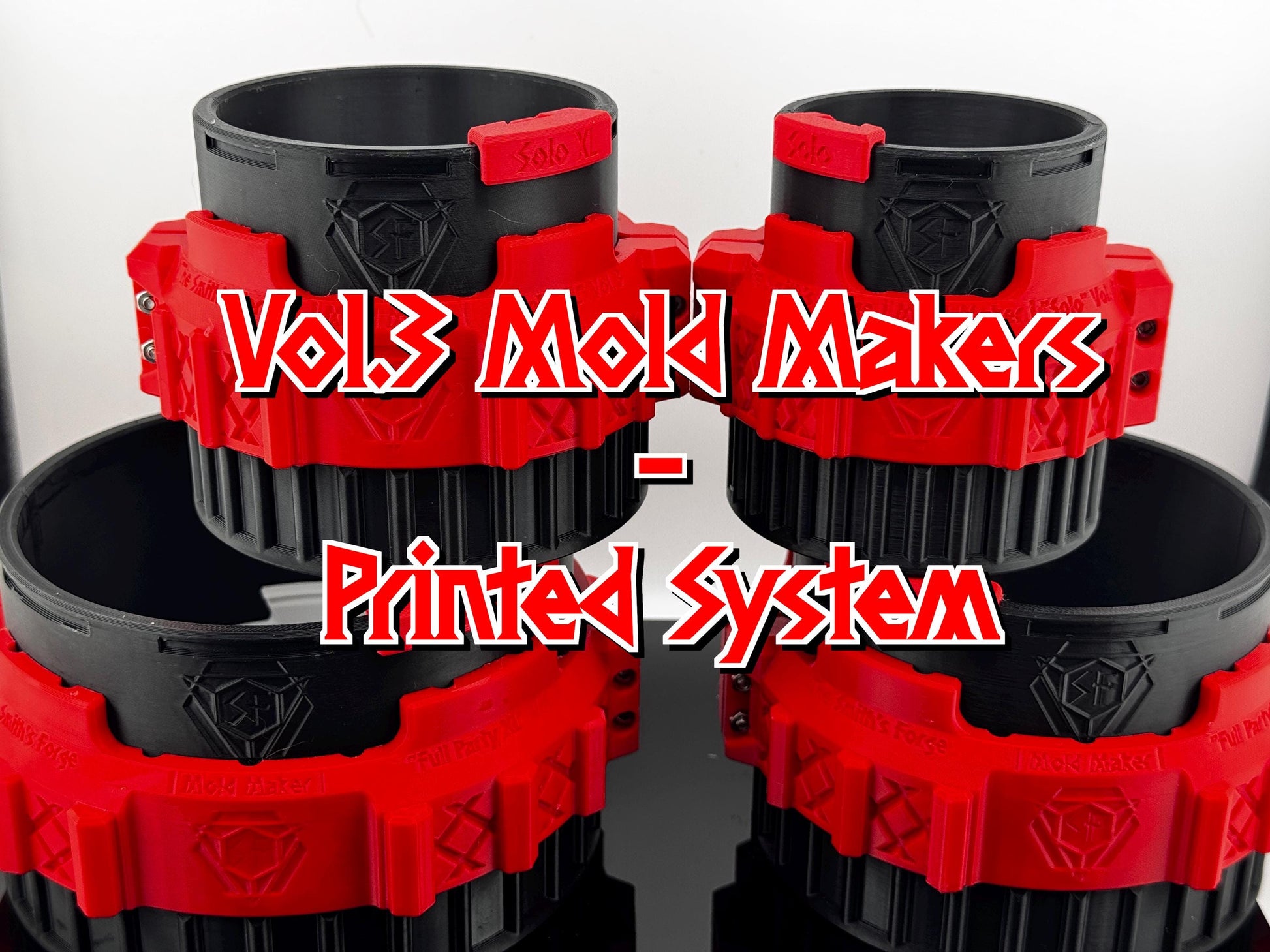

This is the "Core" set of Vol.3 of The Smith's Forge Dice Mold Making System! This is the starting point for all things Vol.3 Mold maker.

It includes files for the "Solo", "Solo XL", "Full Party" and "Full Party XL".

------------------------------------------

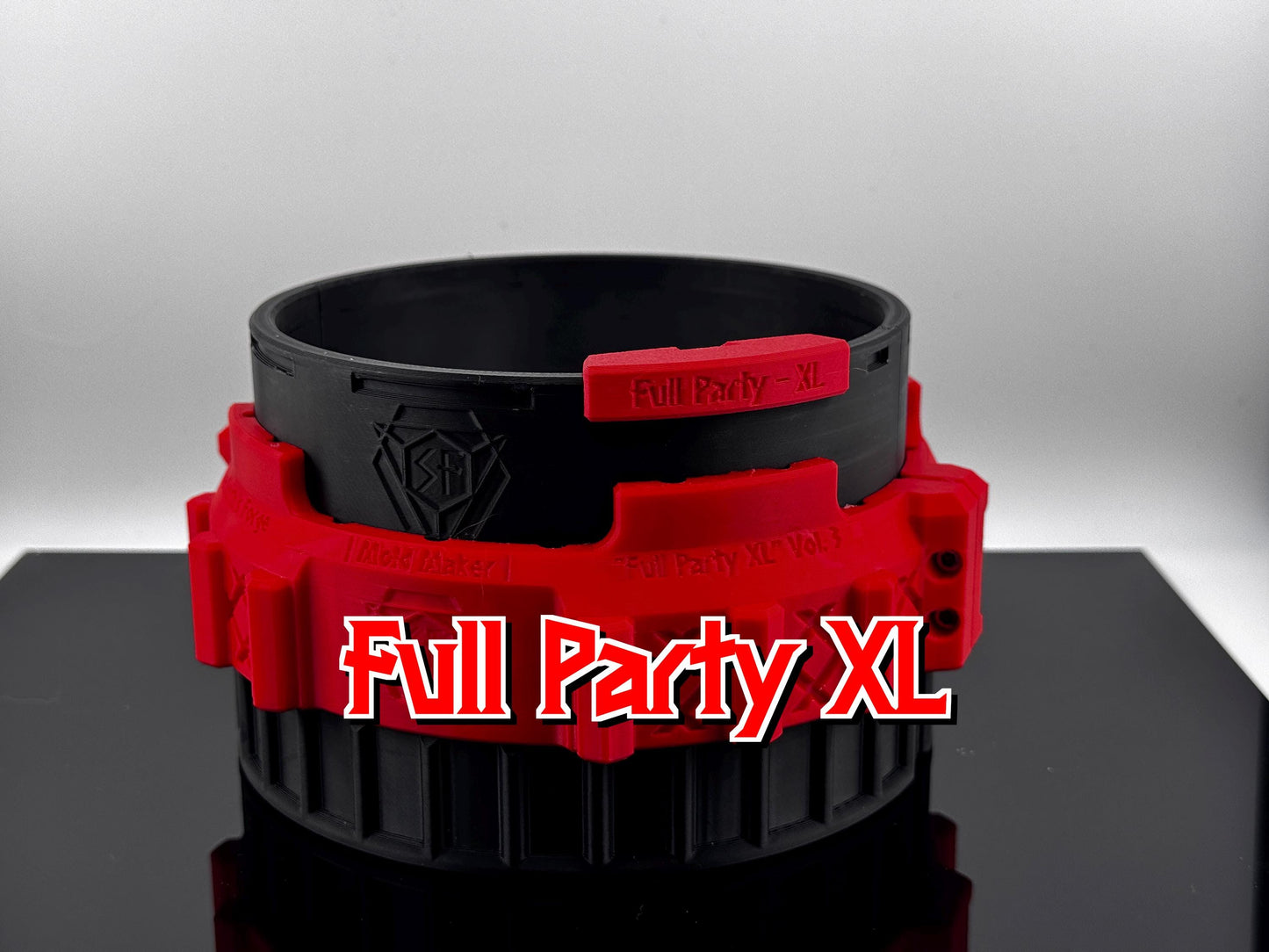

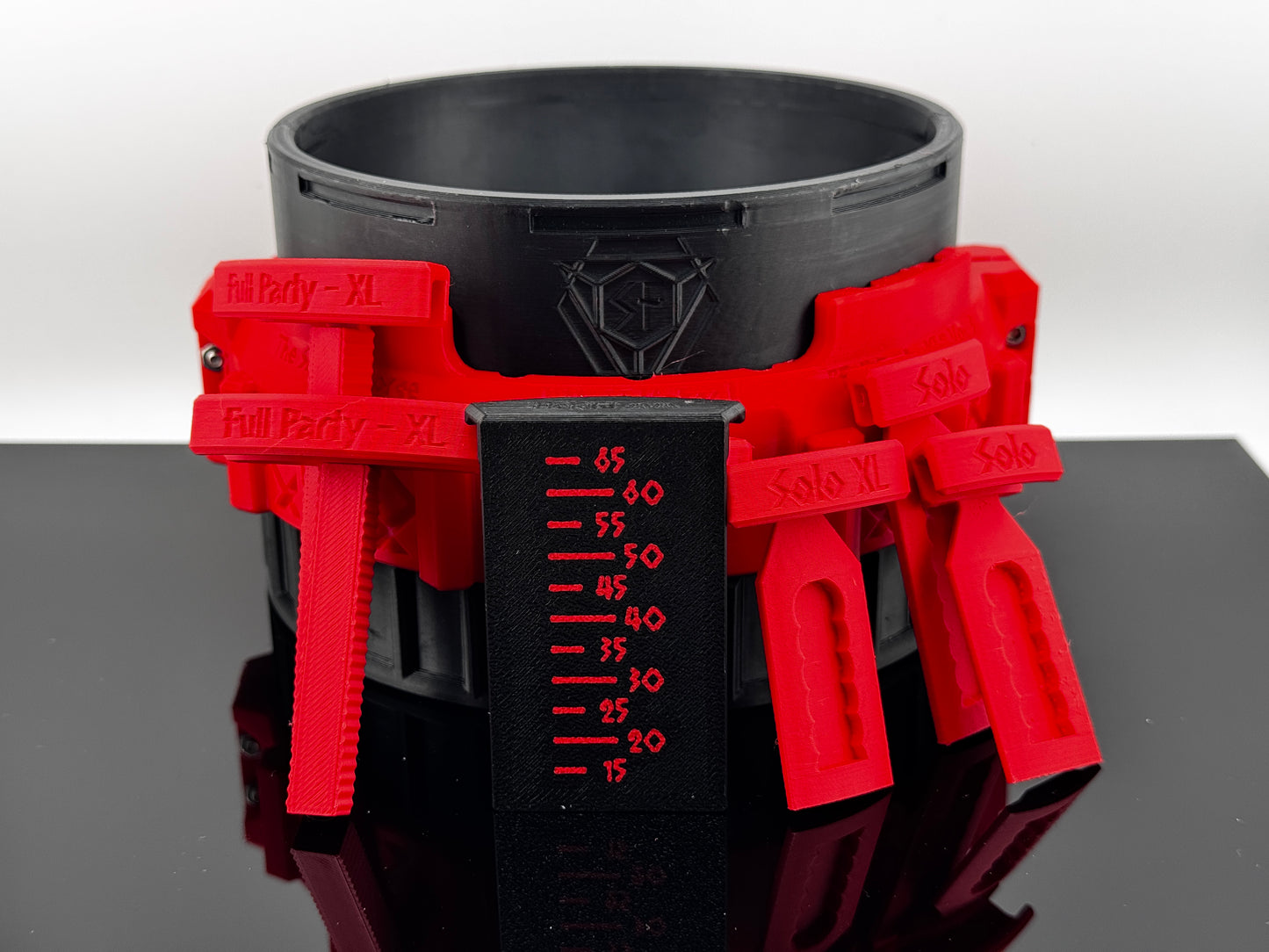

Full Party XL - This is the larger version of the "Full Party" Dice Mold made to hold an extra large set of Dice. This Mold makes a Large 120 mm silicone mold.

Internal Mold Making Dimensions:
Diameter: 120mm
Height: 70mm and 86mm

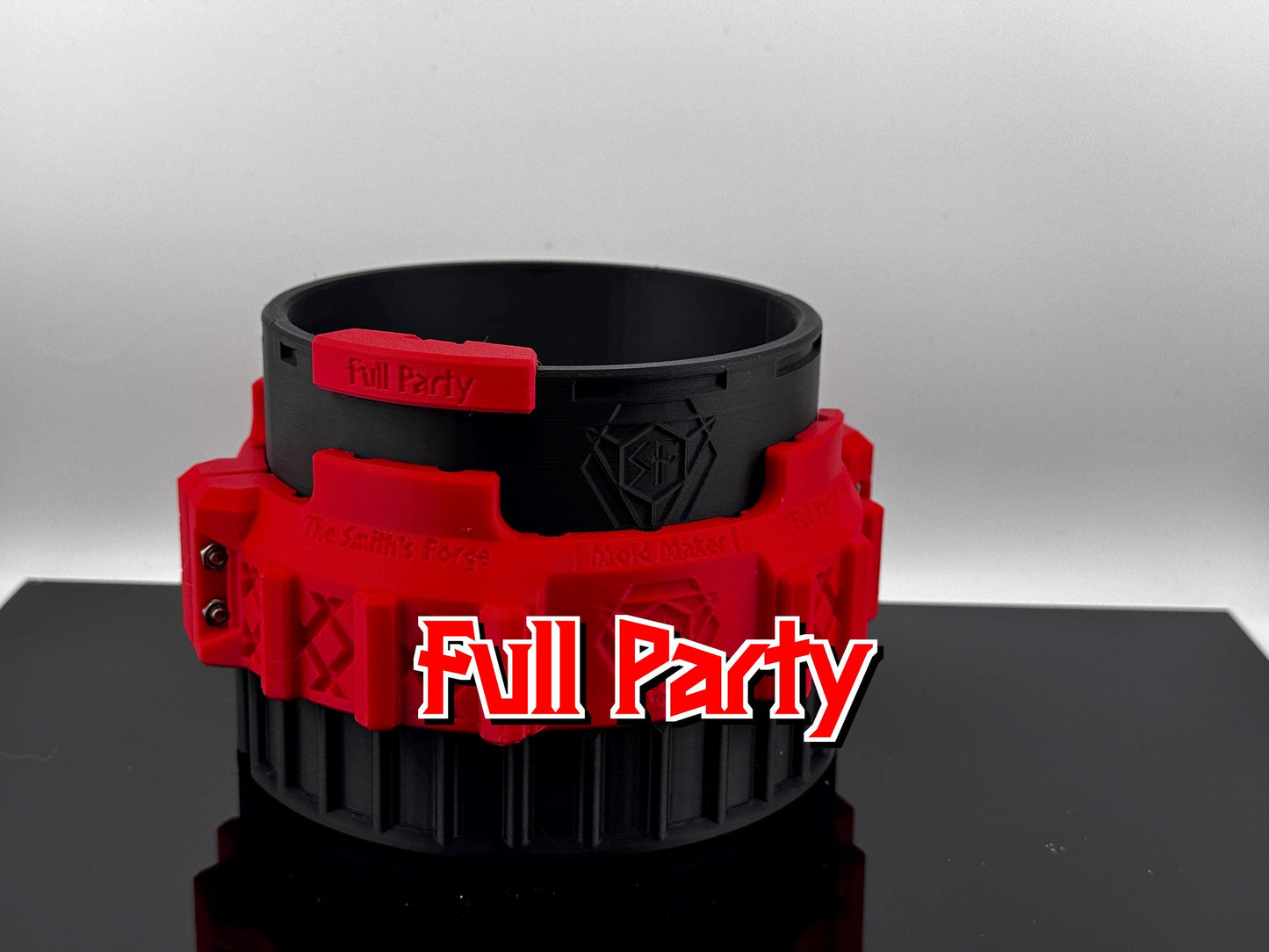

Full Party - This is the larger version of the "Solo" Dice Mold made to hold a standard set of Dice. This Mold makes a standard 100 mm silicone mold.

Internal Mold Making Dimensions:
Diameter: 100mm
Height: 70mm and 86mm

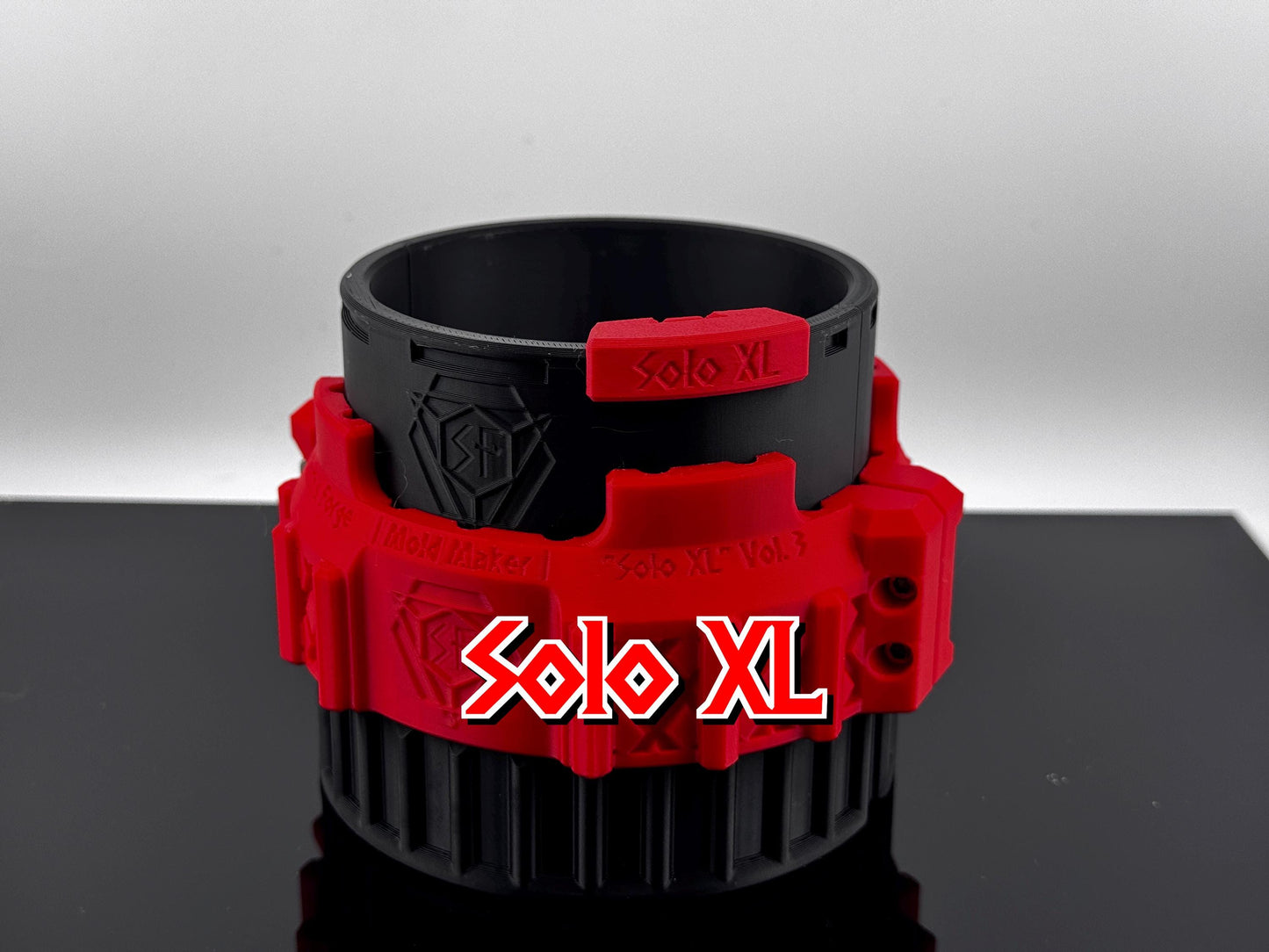

Solo XL - This was the mold introduced late in Vol.2 to support Goliath dice or "Chonks".

Internal Mold Making Dimensions:
Diameter: 80mm
Height: 70mm and 86mm

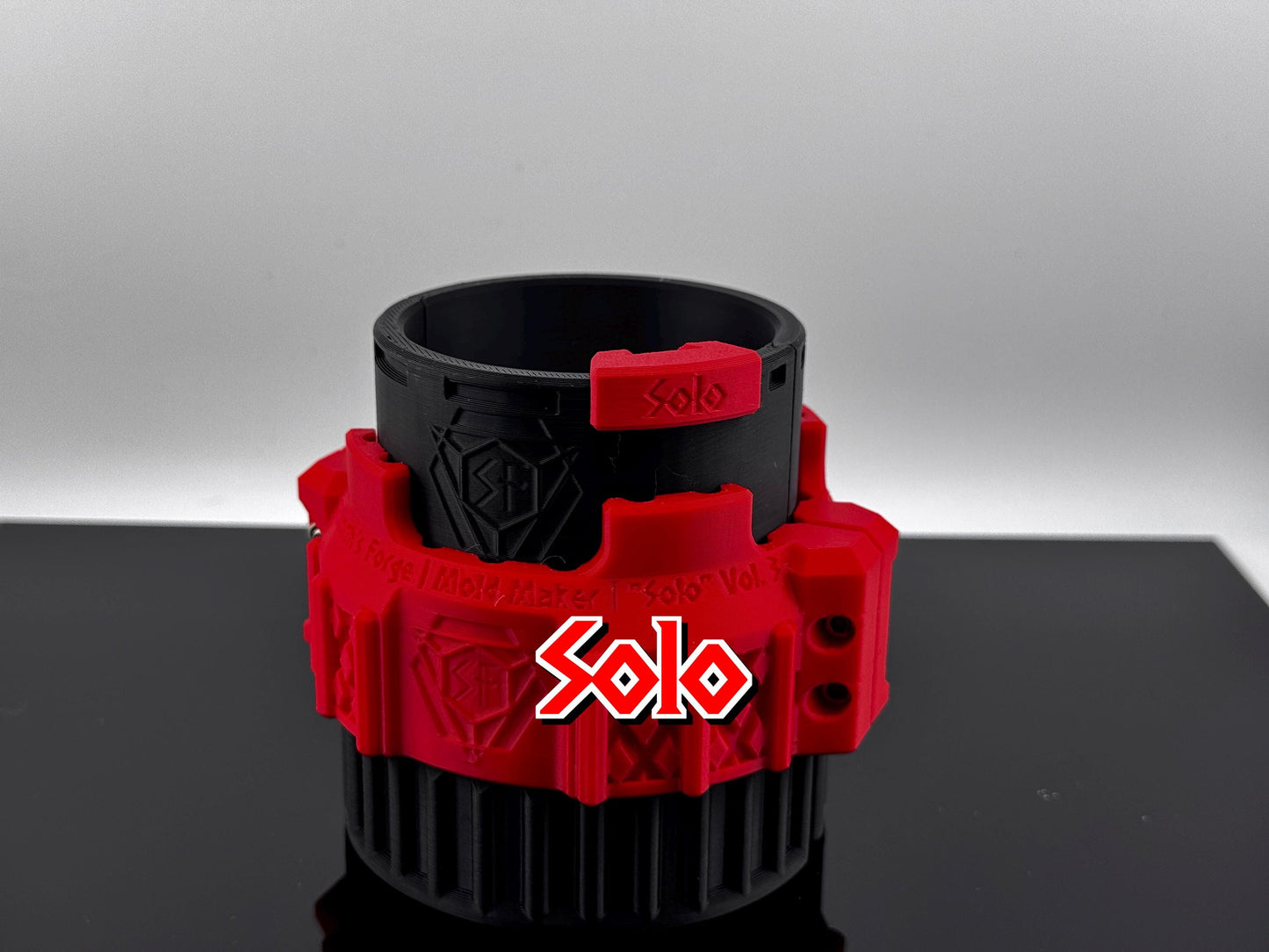

Solo - This is a mold where it all started, designed to make single dice molds.

Internal Mold Making Dimensions:
Diameter: 60mm
Height: 70mm and 86mm

---------------------------------------------
External (Assembled) Dimensions (Height x Diameter)

Full Party XL | 89mm or 105mm(Taller option) x 162mm
Full Party | 89mm or 105mm(Taller option) x 142mm
Solo Xl | 89mm or 105mm(Taller option) x 122mm
Solo | 89mm or 105mm(Taller option) x 102mm

All of The Smith’s Forge designs and files are protected by Copyright Law.

With this purchase, these files are for personal use for your own printing. You do NOT have the right to sell any of these digital files or printed models. You of course DO have the right to sell molds and dice made with this device, just not the files included or prints of the device itself.

Engineering and testing takes time and costs money. I would love to continue to make devices for makers. Please never share or sell a digital file that you do not have the rights to sell.
