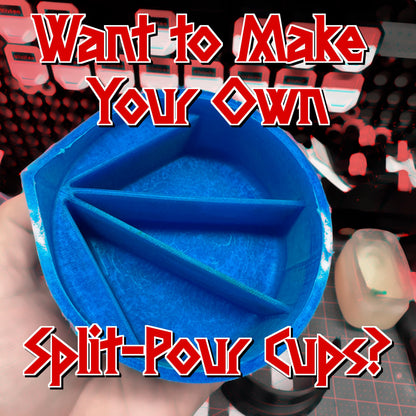

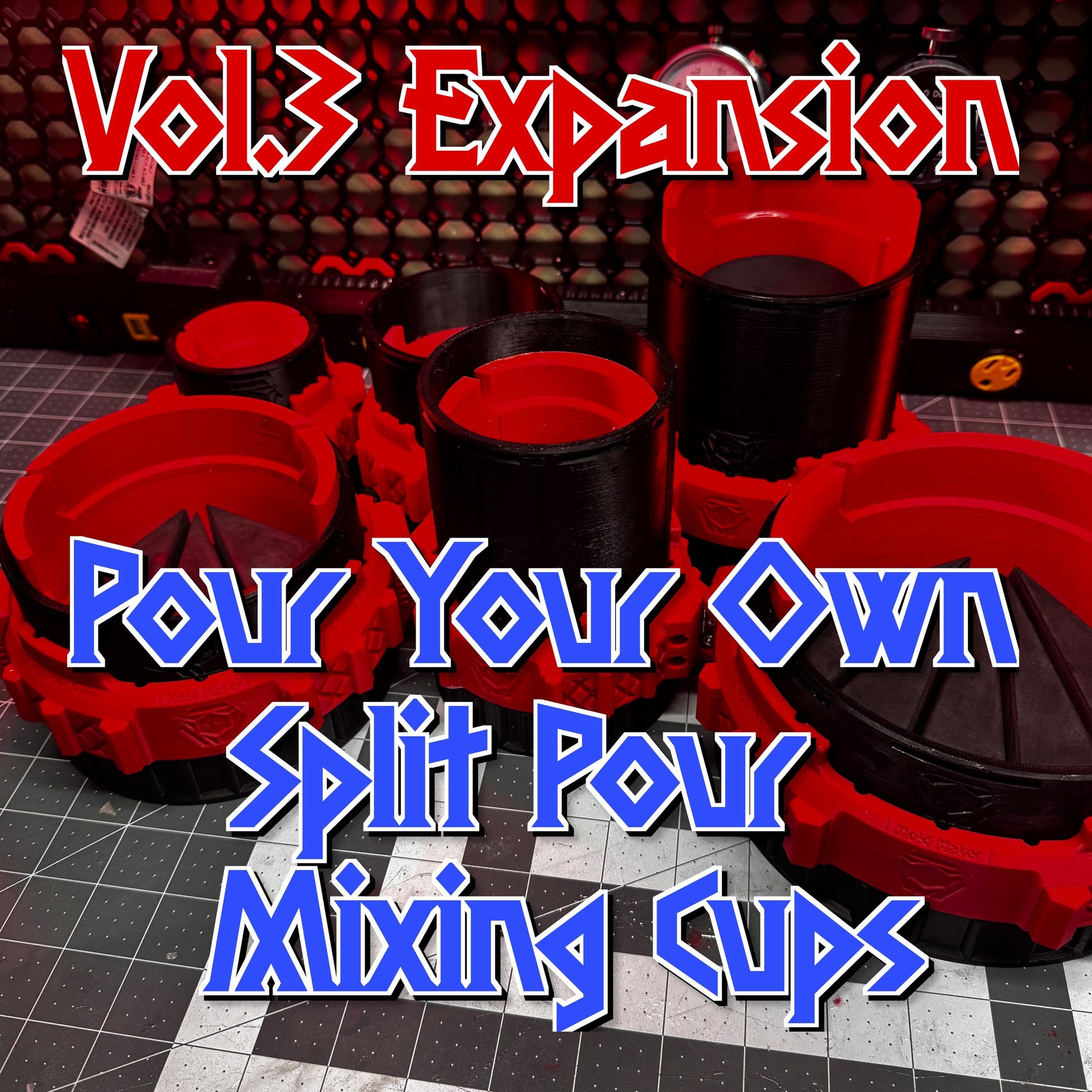

Vol.3 | Expansion 2 | "Pour Your Own Split Pour/Mixing Cups" | Add-on STL Files

Name: Vol.3 | Expansion 2 | "Pour Your Own Split Pour/Mixing Cups" | Add-on STL Files
Brand: The Smith’s Forge
Price: 10.00 USD
Availability: InStock

$10.00 USD

Sale Sold out

>>>This is an Expansion Pack for the Vol.3 "Core" System. IT REQUIRES FILES FROM THE "CORE" TO FUNCTION. <<<
>>>This Pack also contains some files that require "Big and Tall" (The really big stuff)<<<
>>>This contains ONLY the STL files for 3D Printing (FDM/filament), This is not a physical item.<<<

Ever wondered what to do with the excess silicone from your other molds? How about a dump pour that you can toss the excess silicone into?

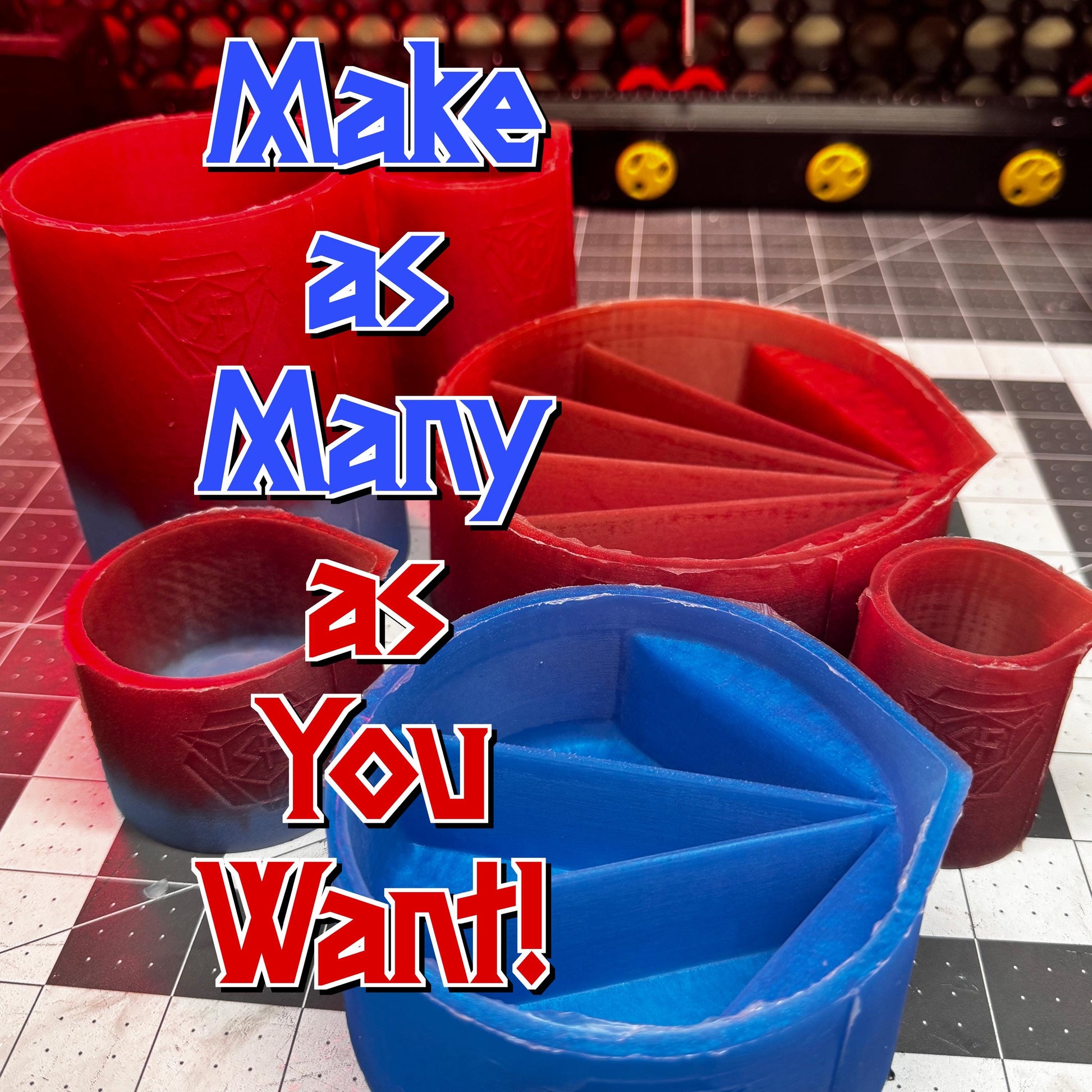

With the difficulty of finding good split pour cups and the complexity of the global market we decided to just make our own. Or in this case design a large system that works with our existing tools to be able to allow you all to make as many cups as you want!

Product features

What did we add? We are going to separate this into 2 sections Standalone and With “Big and Tall”

Standalone

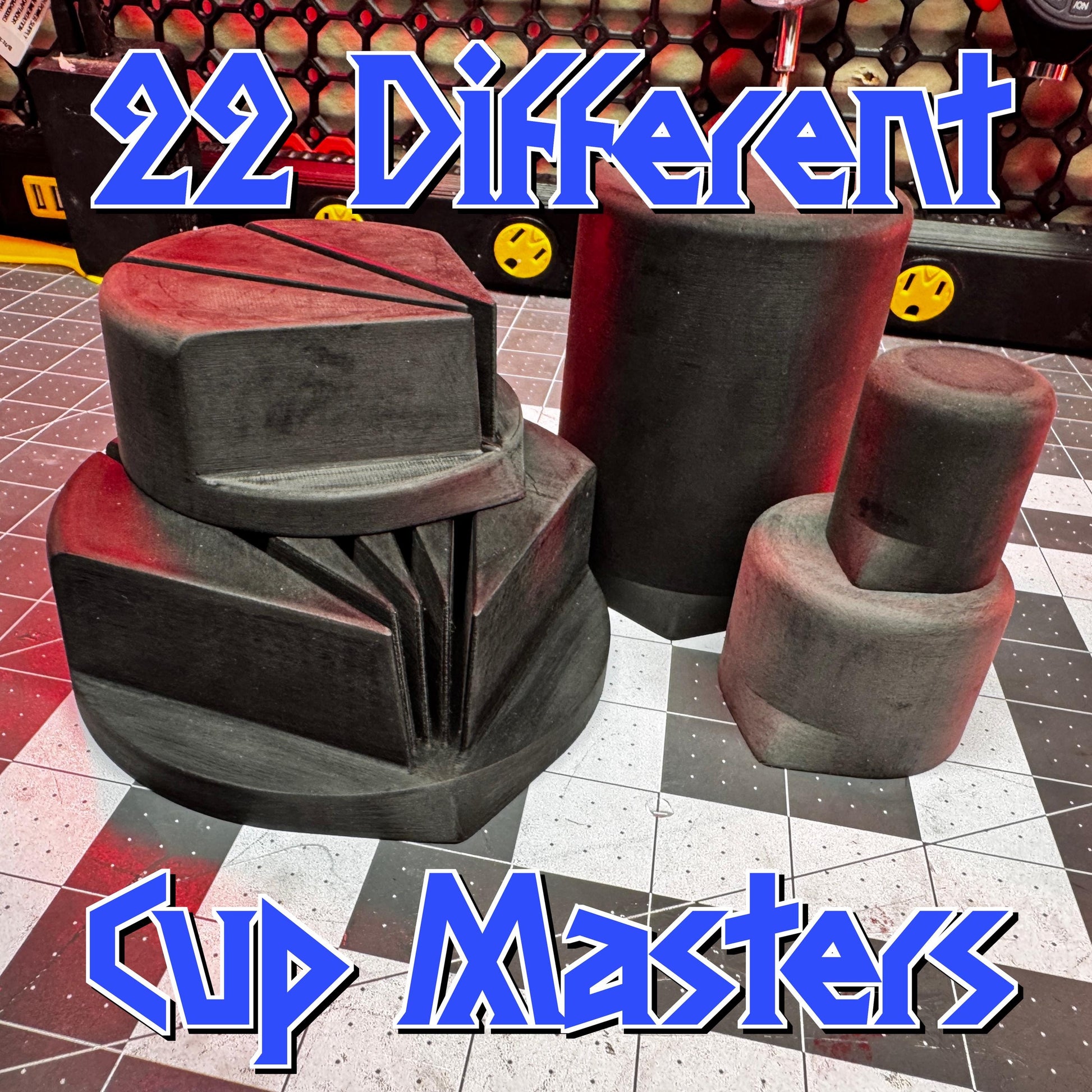

● Masters for Mixing cups for all of the “Core”
○ Solo - We call this one the “Witness Cup”
○ Solo XL
○ Full Party
○ Full Party XL

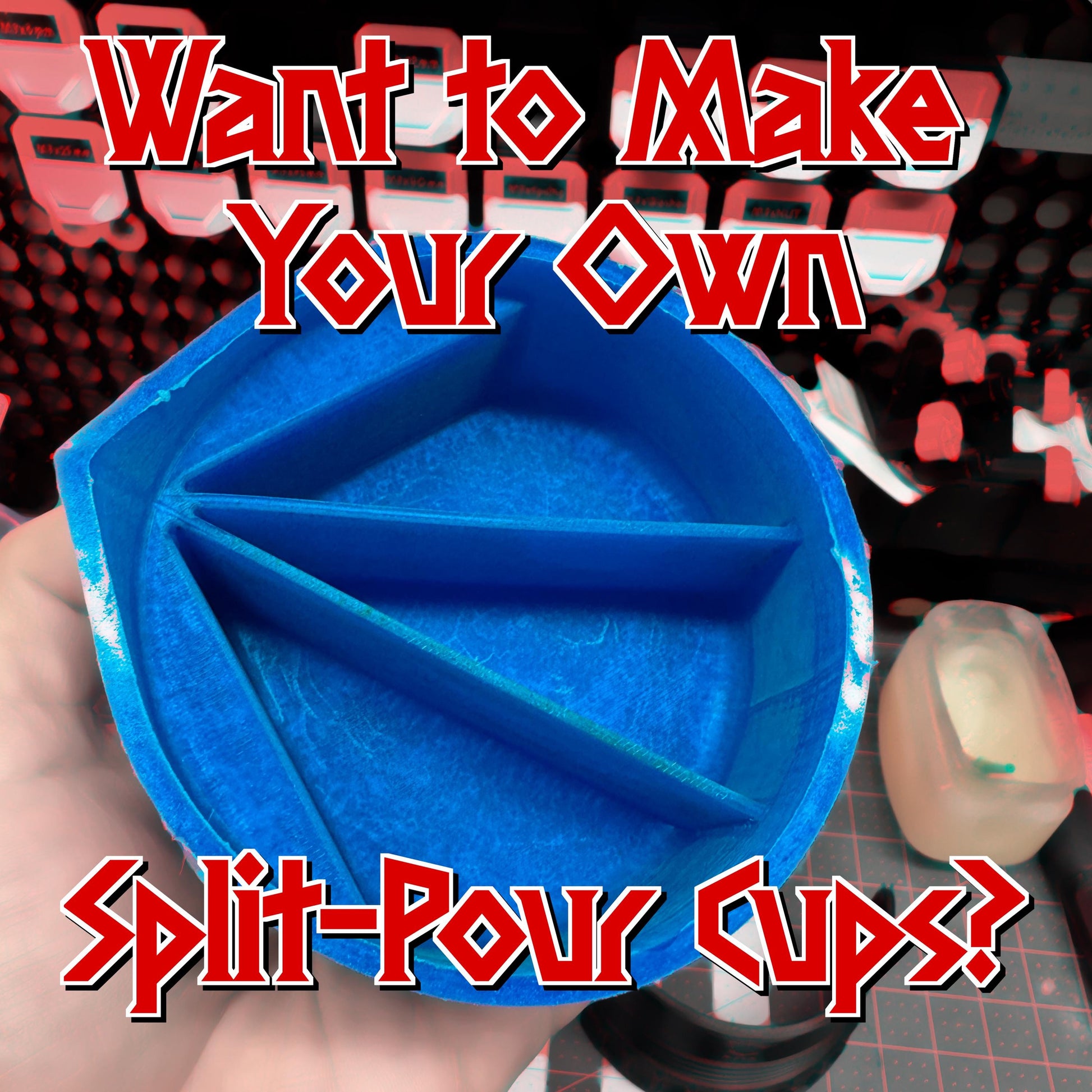

● Masters for Split pour cups for all of the “Full Party” Family
○ Full Party
■ 2 and 3 Zones
○ Full Party XL
■ 2, 3, 4, and 5 Zones
● Every Split pour cup is designed to both have the same sized zones and to have them spaced
the same distance from the pour spout

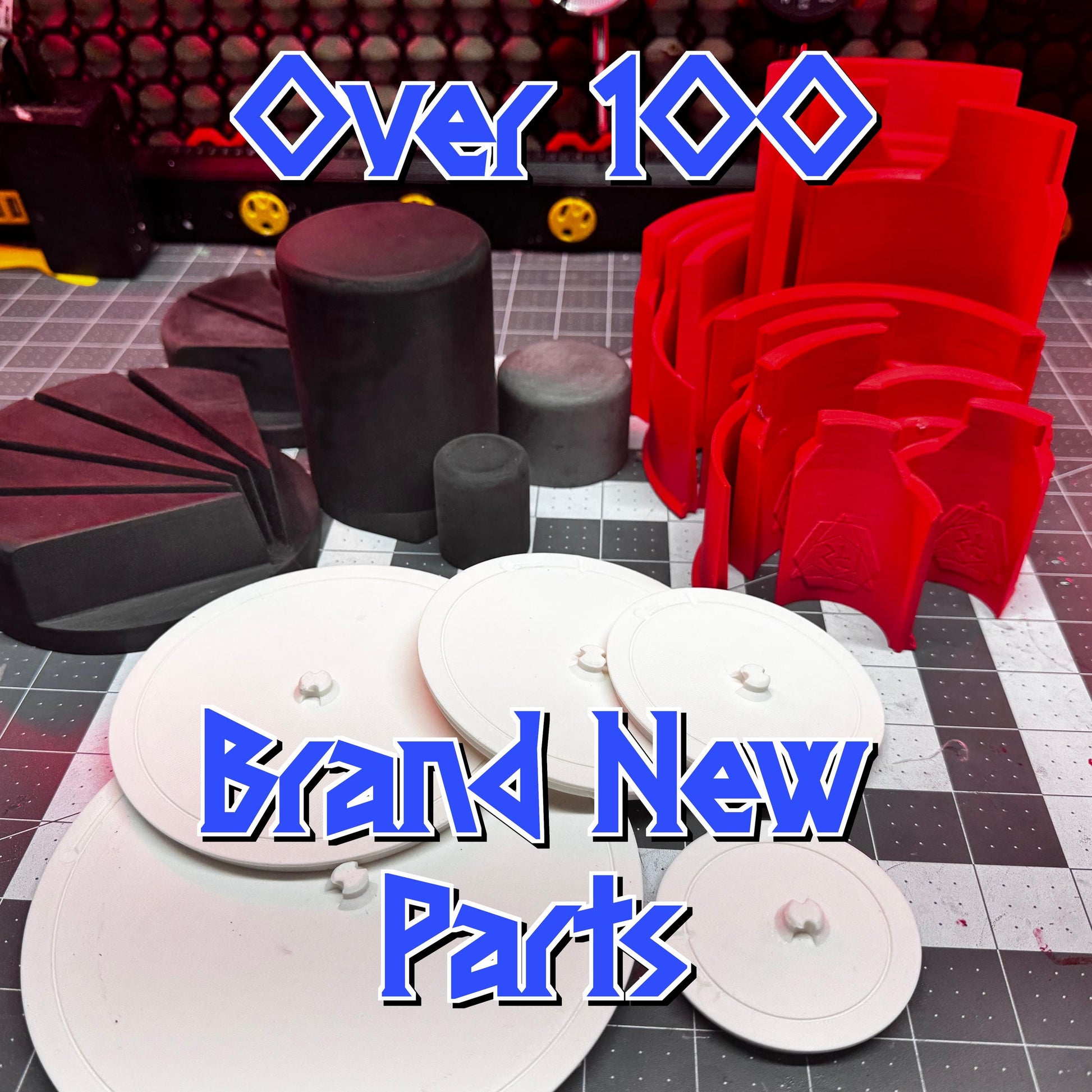

● Custom Spin to lock on plates
○ To keep your masters from floating
○ Also to allow you to process your masters separately
○ They are also marked to show you how to lock them in place
● Tri Split Mold adapters
○ This makes removal easy
○ And keeps seams out of the way
● Easy Cut Channels (just like the rings from the Mold maker)
○ This makes it easy to cut your transfer tape
● Tapered Design for the cups (Both the outside and the Zones!)
○ Harder to knock over
○ And easier to demold
● Bottom Measurement guide
○ This makes sure there is enough weight to the cup to keep it upright
● Alignment notches to mesh into the moldmaker “Core” for alignment
○ Now you get to see why they were added in Vol.3!
● Leverage Wings to help pry the mold open
● Short Pour spout for more even mixing on larger splits
● Custom Sanding Jig to help finish your split pour Masters
○ Toleranced and measured to fit Standard 9X11 Sandpaper

With “Big and Tall”
● A Master for The Mixing cup for the “Big Bad Evil Guy”
○ BBEG
● Masters for Split pour cups for the “Big Bad Evil Guy”
○ BBEG
■ 2, 3, 4, 5, 6, and 7 Zones
● Signature “Extra large” Masters for Mixing Cups FOR ALL OF THE SIZES
○ Solo
○ Solo XL
○ Full Party
○ Full Party XL
○ BBEG
■ This one hold Half a Gallon of material (measured in water at sea level)
○ Signature “Extra large” Mold adapters for Mixing Cups FOR ALL OF THE SIZES

Measurements and Sizing

Listed in the Instructions

Required Hardware

There are a few, and they are all listed in the Instructions

Instructions

Legal Notices

All of The Smith’s Forge designs and files are protected by Copyright Law.

With this purchase, these files are for personal use for your own printing. You do NOT have the right to sell any of these digital files or printed models. You of course DO have the right to sell molds and dice made with this device, just not the files included or prints of the device itself.

Engineering and testing takes time and costs money. I would love to continue to make devices for makers. Please never share or sell a digital file that you do not have the rights to sell.
