Vol.2 | Mold Making System “Goliath” Collection | STL Files

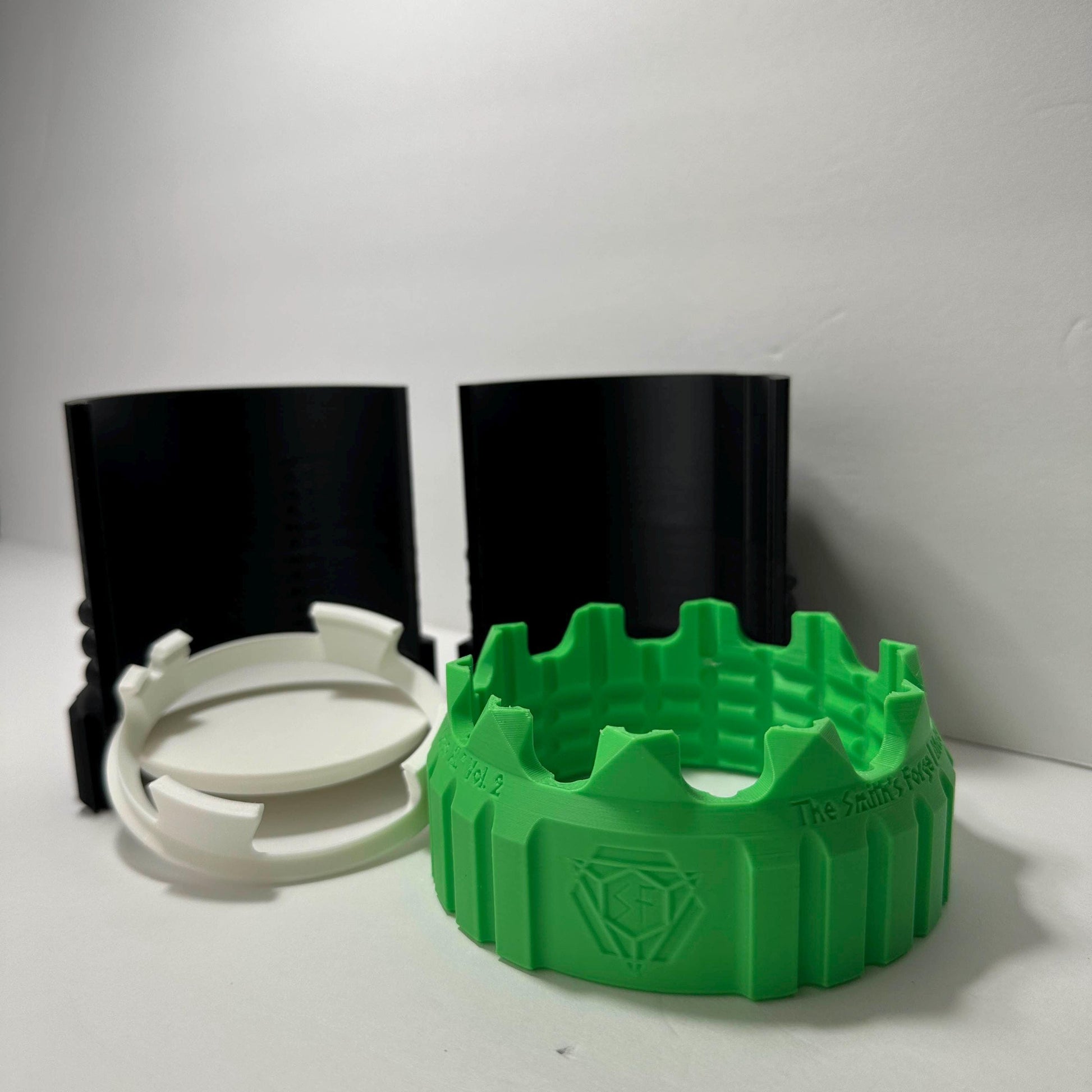

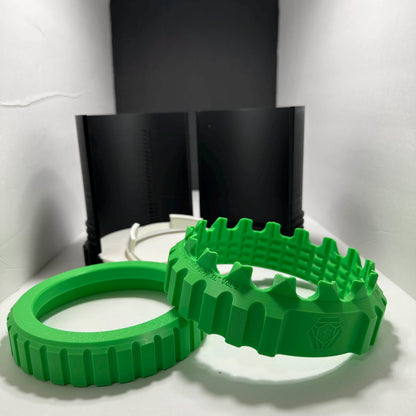

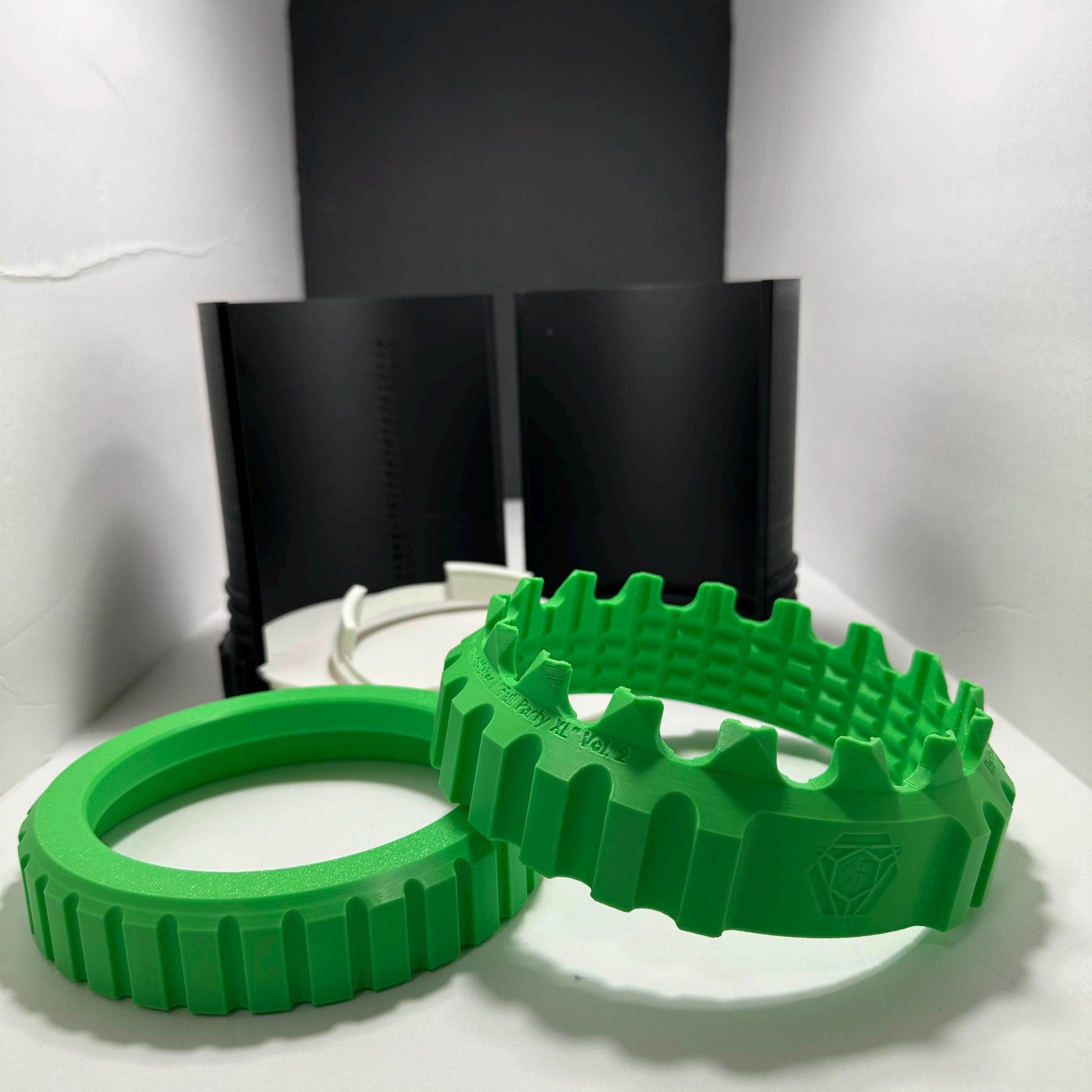

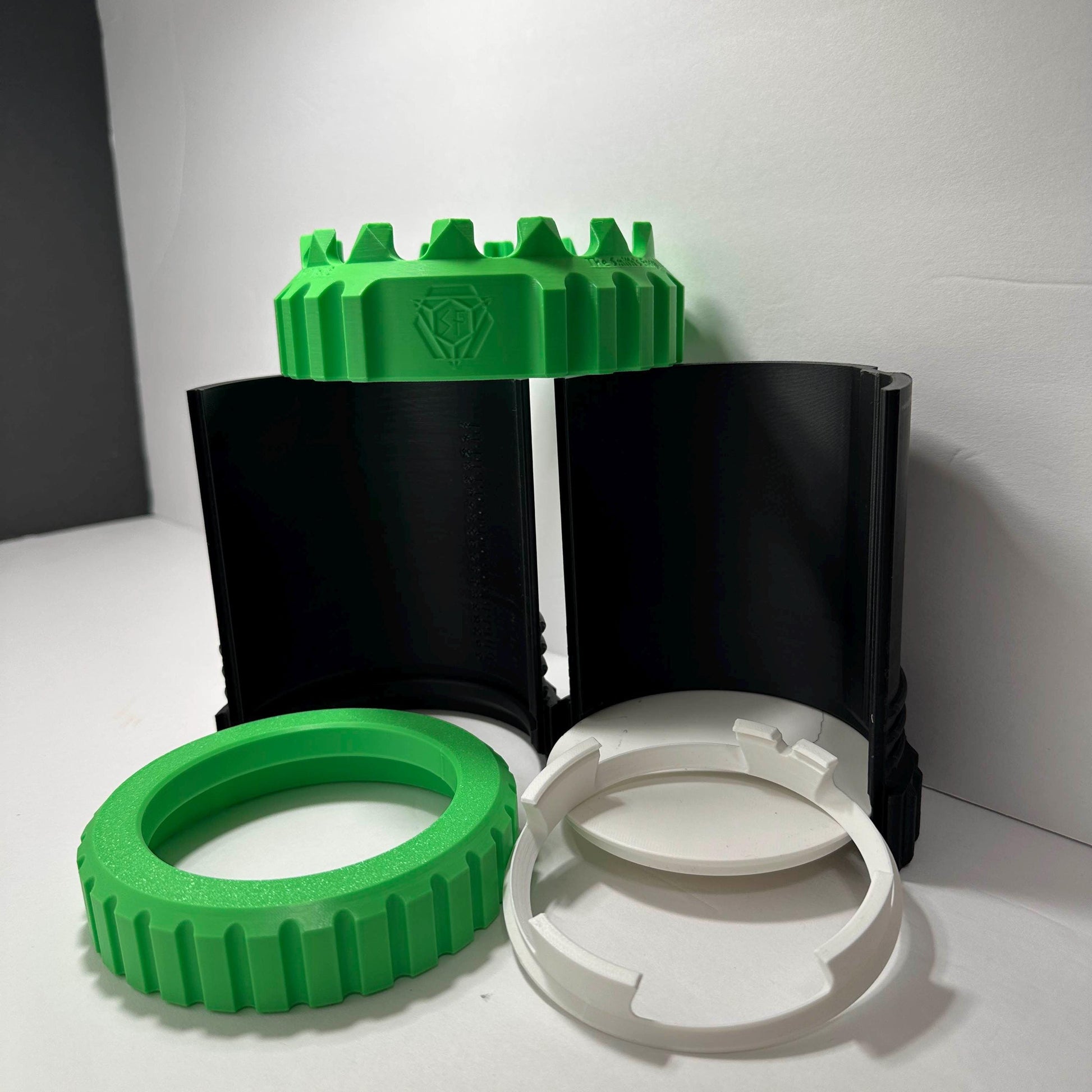

The Base molds features include:
A two part mold for easy access to your master and any inclusions
A two part inner ring that makes placing your taped master easy
A screw on ring system that prevents leaks
Built-in tapered keys to lock your lid down securely
A Built-in flat surface for protecting the bottom of your mold while making your lid
A print that requires no supports
Grips on parts to easily unscrew the rings, even under the pressure of your silicone

Added in Vol.2

Mold Body:
● Made the "Comfort Grip" the main version and moved the “flat bottom” to an alternate.
● Swapped the inner channel to a double "V" to further decrease flashing.
● Added a Flashing collection zone to help further mitigate binding with really thin silicone.
● Added (Optional) magnetic rail system to support Makers for marking your molds for what.
they are or when they were made.
● Added 10/15/20/25mm Markers and slides for magnets.
● Added bottom geometry to support stacking.
● Added measurement tool to inside wall for measuring for bottom of mold thickness.

Mold Ring:
● Added additional larger grip pad with logo.
● Rounded a few sharp edges.
● Recut the inner threads to make printing more accurate by putting the outermost geometry.
through a 45deg recut based off of angle to thread to the print plate.
● Added (Optional) subtle tensioning teeth to the ring to create an even more aggressive seal.
● Re-run all of the embossing.
● (Full party family only) Re-created grip for larger spaces and better grip.

Inner Plate and Key Ring:
● Changed the Angle of attack for the ring edge to create a 45 deg chamfer that will build
automatically into the mold to reduce flashing and remove the need to cut reliefs from the
mold.
● Added a unique Cut-out to key to remove the necessity of cutting your own.
● Smoothed all of the inner key surfaces to further help with reduced flashing.
● Also, Created 3-ish new mold Sizes.
● Taller versions of both of the full parties to support chonks (just an extra option for free).
● Added The all new "One-Shot" mold for making really small single dice, inclusions and blanks.

Goliath Specific Updates

Solo XL:
● This is a totally new size with an Internal Diameter of 80mm. This places it right between the
60mm Solo and the 100mm Full Party
● We also raised the height of the Solo XL to further support “Chonks”
Full Party Family:
● We made them really, really tall ;)
● There is a new part called the “Top Lock” that helps to hold the mold together at the tall
height!

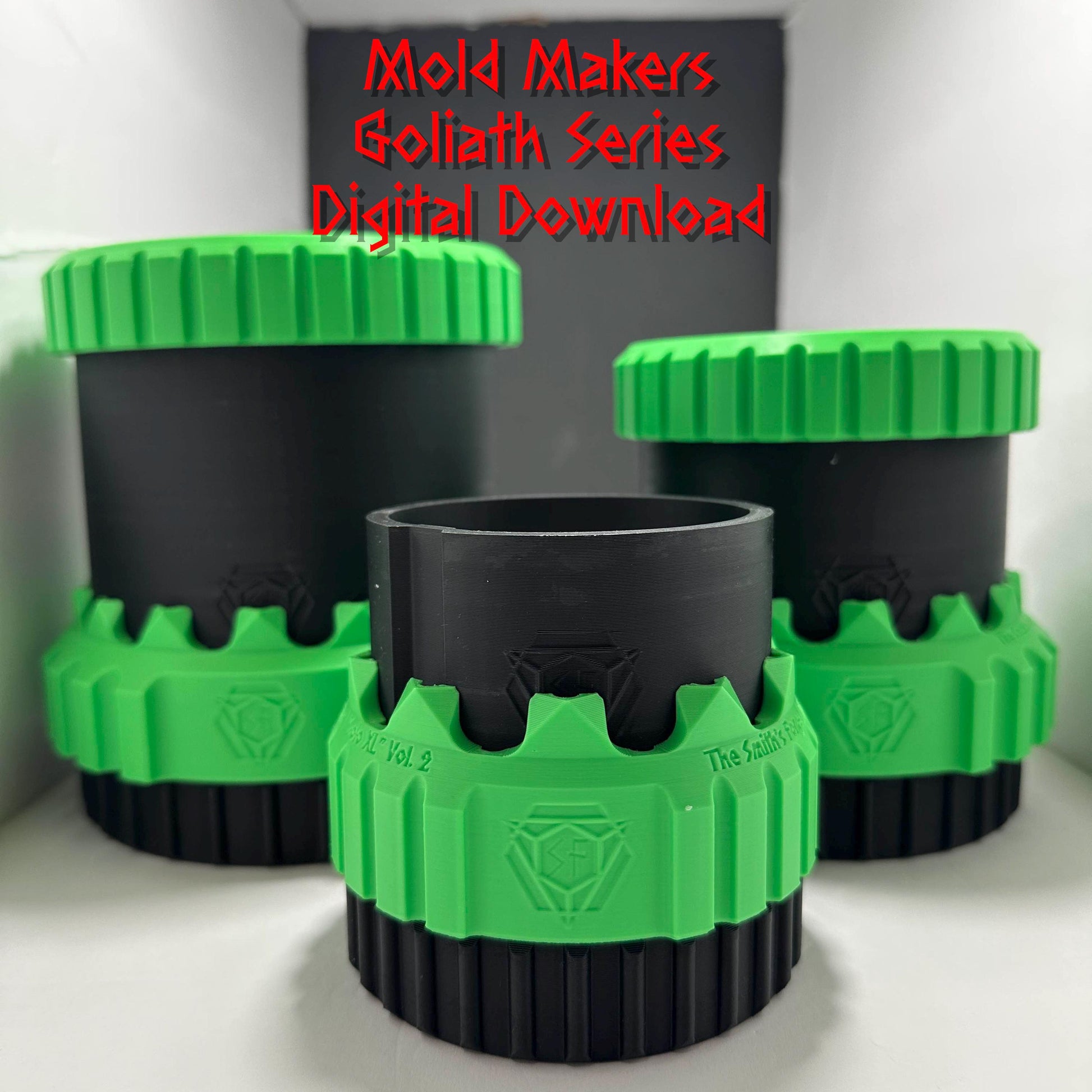

Goliath Full Party XL - This monster is sits at the very edge of what this design can handle. It is designed to make molds for dice up to 100mm!

Internal Mold Making Dimensions:
Diameter: 120mm
Height: 140mm

Goliath Full Party - Not quite as large as its XL brother this sits comfortably within what this design can handle. It is designed to make molds for dice up to 80mm

Internal Mold Making Dimensions:
Diameter: 100mm
Height: 120mm

Solo XL - Like the Solo before it, this is where this project really started, it was designed primarily to make molds of my "Chonk" dice. Them being 60mm

Internal Mold Making Dimensions:
Diameter: 80mm
Height: 82mm

---------------------------------------------
External (Assembled) Dimensions (Height x Diameter)

Goliath Full Party XL | 160 x 160mm
Goliath Full Party | 140 x 140 mm
Solo XL | 101mm x 110mm

All of The Smith’s Forge designs and files are protected by Copyright Law.

With this purchase, these files are for personal use for your own printing. You do NOT have the right to sell any of these digital files or printed models. You of course DO have the right to sell molds and dice made with this device, just not the files included or prints of the device itself.

Engineering and testing takes time and costs money. I would love to continue to make devices for makers. Please never share or sell a digital file that you do not have the rights to sell.
